Seawall Repair in Palm Harbor, FL

Seawall Repair in Palm Harbor Without a City Hall

Palm Harbor is a Census-designated place, not a city, so wall work here answers to Pinellas County twice. Under County Code Sec. 58-511, the county building department sets construction standards and issues the building permit for a seawall in unincorporated areas. Separately, the county's Water and Navigation section permits seawalls, rip-rap and tie poles in county waters, with applications filed through the Pinellas County Access Portal.

A repair or replacement that stays put is the lighter path. Sec. 58-573 lets an existing wall be repaired or replaced without a county dredge and fill permit, as long as a replacement sits no more than one foot in front of the old face. Push it farther out, or build a wall where none stood, and the dredge and fill permit comes back in. Our marine contractor page for this community covers dock reach and lift placement on these lots, and the full service overview lays out every method we use.

From Ozona's Bayous to Lake Chautauqua: Where Local Walls Sit

Palm Harbor holds a lot of water. The 2020 Census boundary covers 44.9 square kilometers of land and 27.8 of water. OpenStreetMap puts Saint Joseph Sound, Crystal Beach, Dolly Bay and Little Dolly Bay, Lungrun Cove and Honeymoon Channel inside that line, along with Boggy, Greens, Klosterman, Sutherland and Smith Bayous, Home Port Marina and the Ozona Fish Camp. Inland, Lake Chautauqua and Saint George Lake have shorelines of their own.

That spread decides which county wall standard your repair has to meet. Sec. 58-576 covers walls on non-Gulf water, which takes in the bayous, the bays and the lakes. Sec. 58-577 sets a heavier standard for walls facing the Gulf of Mexico. A wall facing open Gulf water and one at the back of a dead-end bayou can fall under different sections, so we confirm which one governs your lot before we price it.

Flood mapping splits the same way. FEMA's map puts about 15% of the area inside the boundary in Zone AE and about 6% in Zone VE, the wave-velocity zone, with AE base flood elevations of 6 to 12 feet and VE values of 12 to 14 feet. Most panels here carry an August 24, 2021 date. Look up your own lot before you talk about a taller cap.

Matching a Repaired Section to the County Wall Standard

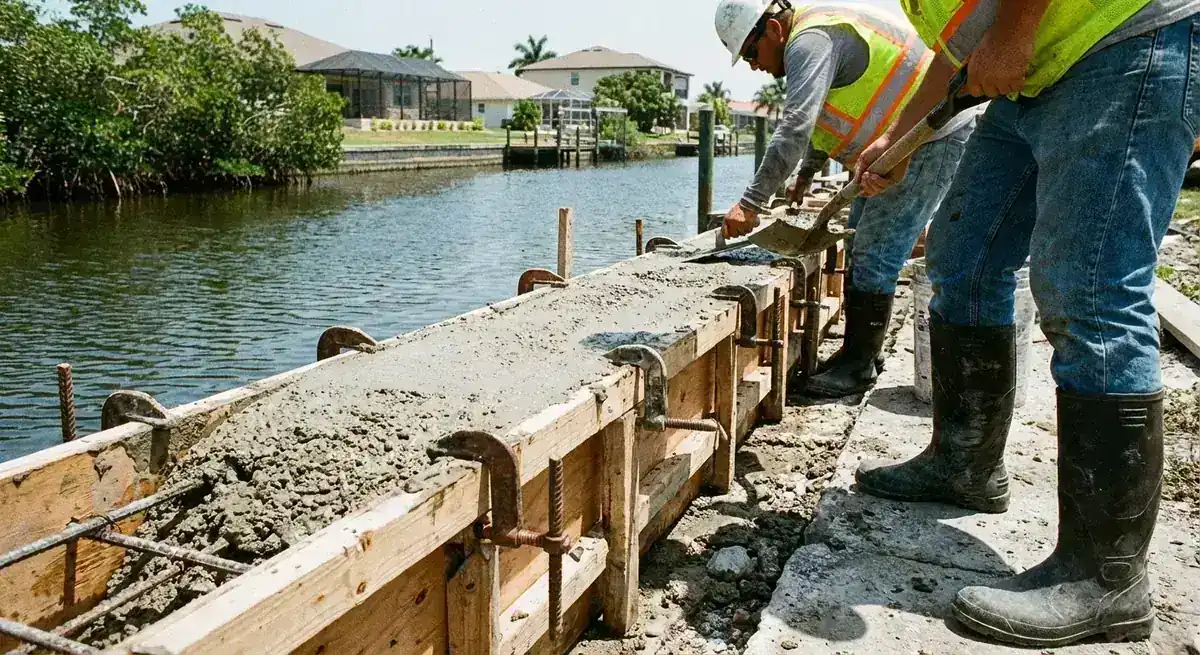

When seawall repair in Palm Harbor replaces a run of cap or a few panels, the new work has to meet the county minimums for the wall type, not just match the old pieces beside it. For concrete walls on non-Gulf water, Sec. 58-576 calls for:

• 3,500 psi concrete with 2 inches of cover over the steel
• Sheet piles at least 5-5/8 inches thick
• A poured cap at least 9-1/2 inches thick and 16 inches wide, with four #4 bars
• Steel tiebacks of at least #8 bar size, no more than 10 feet on center and at least 12 feet long
• Expansion joints normally every 40 feet, and bay-front walls at elevation 5 feet or higher on the USCGS mean sea level datum

The same section limits aluminum walls to 5 feet of exposed height. Sec. 58-578 adds a rule that catches owners planning a room addition, shed or patio. No tieback may be cut or removed for other construction without approved plans that keep the wall stable, and the county's standard designs assume sandy soil with a 30 degree angle of repose. If a past project nicked a tieback, the section above it can start to lean, and the repair begins with new anchors instead of a new cap.

Rip-Rap, Seagrass and Mangroves on a Bayou Repair

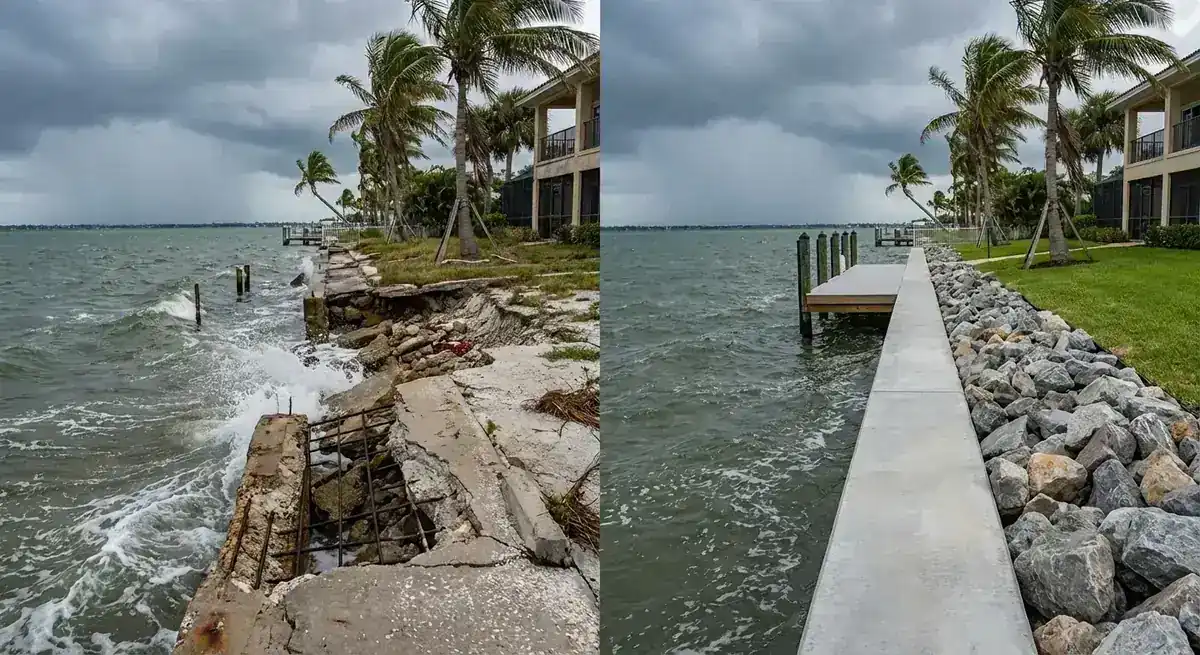

The 25% line in Sec. 58-573 is the piece of Pinellas code a repair budget here has to plan around. Where more than a quarter of a wall's face is repaired, or a wall is replaced, the county may require rip-rap at the base. The rock has to be clean concrete or natural stone roughly 6 inches to 3 feet across, laid no steeper than 2 to 1.

County code also leans away from hard shorelines. Sec. 58-573 and Sec. 58-575 say rip-rap is to be used instead of seawalls where possible, vegetation instead of hardening wherever possible, and no seawall goes on a shoreline that generally supports wetland vegetation, with narrow exceptions. Water and Navigation reviews every application for environmental and navigation impacts, and it publishes a Coastal Environmental Resource Zone map showing where seagrass or mangroves have been found nearby. Expect closer review of where rock and equipment go if your bayou lot sits near those areas.

We plan the seawall repair around the rock from day one. If your repair length runs close to a quarter of the wall, the written estimate shows both scopes: the repair alone, and the repair with toe rock. Rip-rap at the toe typically runs $150 to $400 per linear foot. A 50 LF run of toe rock at that rate is $7,500 to $20,000, and once the stone is in, it also protects the toe from scour.

Salt, Myakka Ground and Helene's Surge Along the North Pinellas Shore

Soil changes across Palm Harbor, and so does how hard it is on steel. USDA soil survey data for the boundary maps Astatula soils and Urban land, an excessively drained sand, across about 23% of the area. Other units read differently: Myakka, Matlacha and St. Augustine, Immokalee and Anclote soils all carry a High rating for corrosion of steel. Tiebacks and rebar sitting in those soils are where we look first for rust.

Age adds to it. For seawall repair in Palm Harbor, we read three things before a number goes in writing: the storm line, the soil and the wall's age. The Census Bureau's 2020 to 2024 survey puts the median home at 1985, with about 29% of units built before 1980. A wall from those decades has had a long run in salt water and storms.

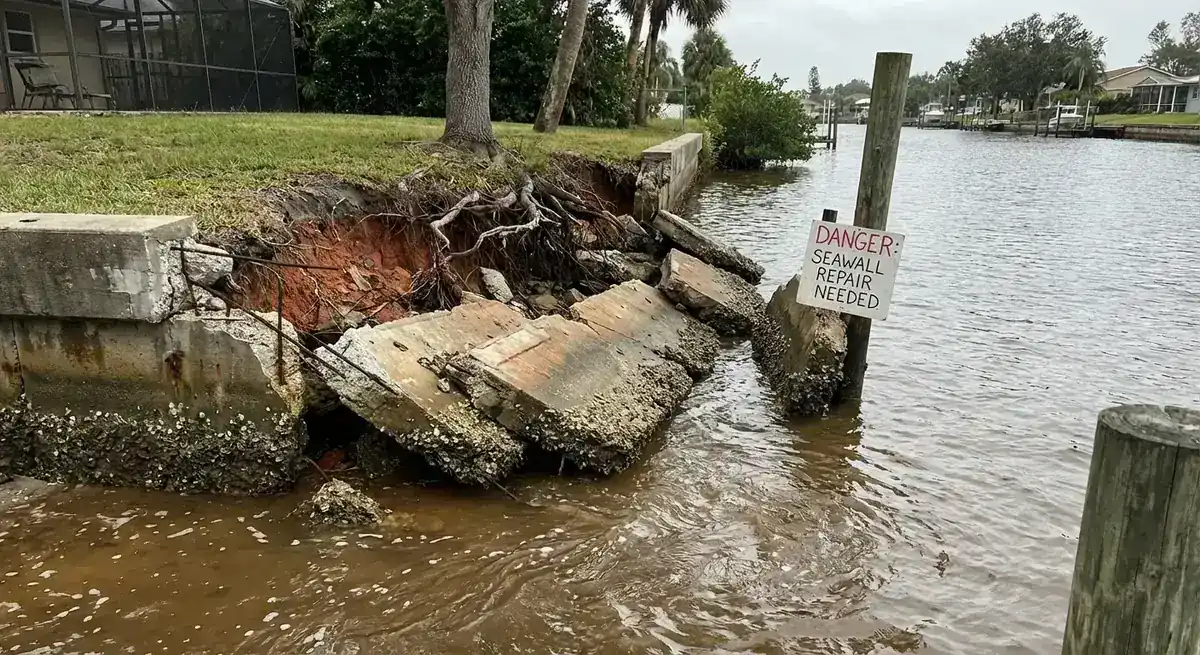

Hurricane Helene in 2024 pushed 5 to 7 feet of water above ground from the Anclote River southward, according to the National Hurricane Center, and a USGS sensor at nearby Fred Howard Park read 7.23 feet above mean higher high water. An overtopped wall can lose fill from behind before anything shows on the face, so check the yard side first. Our after-the-storm seawall checklist walks through what to photograph.
