Seawall Repair in Port Richey, FL

Seawall Repair in Port Richey Under the City's Own Checklist

The city is small and incorporated, sitting at the mouth of the Pithlachascotee River, and its Building Department publishes a one-page seawall permit checklist. The checklist splits the work in two. A repair carries the note "No DEP and Army Corps if size for size" and needs a permit application, plus an owner-builder affidavit or Notice of Commencement where they apply. A new seawall needs DEP and Army Corps approval and engineered plans with a survey.

A local mailing address doesn't put you in the city. Bayonet Point, Jasmine Estates and much of the 34668 ZIP are unincorporated Pasco County, where the county permits the wall. Our marine contractor page for the city covers city dock rules, and the overview of replacement and wall methods covers the options across the area.

Five City Inspections, From Footer Steel to Final

The checklist lists the inspections the city performs on seawall work: Footer Form and Steel, Piling, Panel Reinforcement, Tie Beam and Cap, and Final. Not every seawall repair touches all five. A seawall crack repair with a cap patch may only see the cap and final stops, while a seawall tieback repair with new panels and anchors can hit each one.

Here's what each stop means on the ground:

• Footer form and steel. The inspector checks the forms and reinforcing for any footing before concrete goes in.
• Piling. New or replacement piles get checked once they're set.
• Panel reinforcement. Steel in new or rebuilt panels gets checked before it's covered.

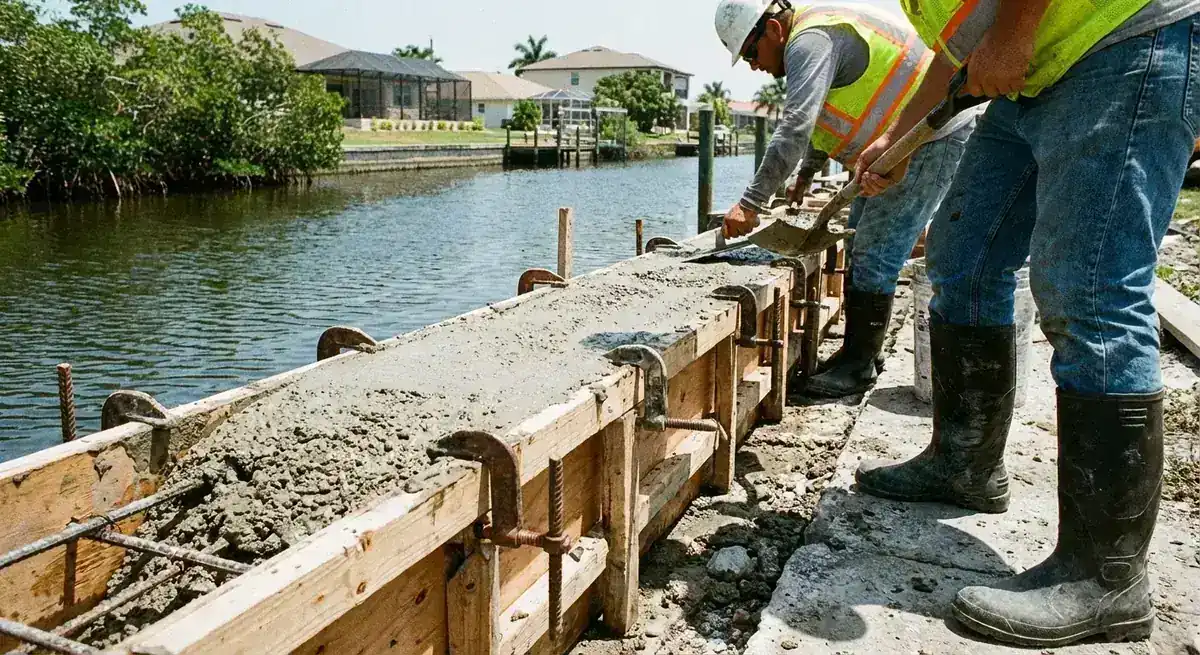

• Tie beam and cap. The cap forms, the steel and the tieback connections get checked before the pour.
• Final. The finished wall is checked against the permit.

Each stop is a hold point. The cap isn't poured until the tie beam and cap inspection passes, so we build the schedule around the city's calendar and keep forms ready to adjust. The city's checklist also sets its own Notice of Commencement wording: "if job cost is equal to or greater than $5,000". State law sets the recording line lower, at improvements over $2,500 under F.S. 713.13 and 713.02(5), so plan on recording one for any wall job over $2,500.

Fill, Aripeka Sand and Tidal Muck at the Mouth of the Cotee

The city grew up where the Pithlachascotee River meets the Gulf. Wikipedia records Aaron M. Richey settling there in 1883 and the city incorporating on May 18, 1925. OpenStreetMap places Port Richey Waterfront Park, Brasher Park and Wilmslow Park inside the 2020 boundary, with the river at its edge, and the Pasco park directory places the Oelsner Indian Mound inside it as well.

The ground at that river mouth is hard on walls. USDA soil survey data at 82 sample points inside the city maps Udalfic Arents-Urban land complex, a fill rated High for concrete corrosion, under 40.2%. Aripeka fine sand, somewhat poorly drained and rated High for steel corrosion, covers 26.8%. Homosassa mucky fine sandy loam, a very poorly drained tidal soil rated High for both steel and concrete, covers 8.5%. Tavares-Urban land complex takes another 8.5%, and Pompano and Adamsville fine sands 3.7% each.

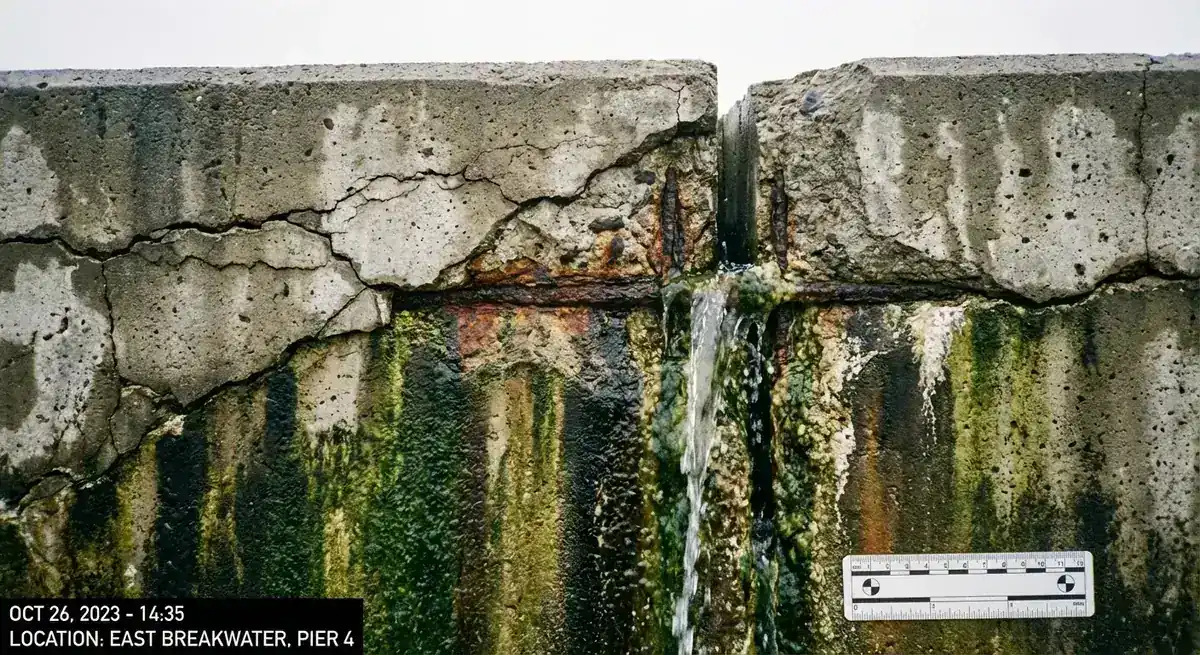

Put together, about three quarters of the sampled ground in the city is fill or wet soil rated High for corrosion. That's why seawall repair in Port Richey starts with the anchors and the steel in the cap, not just the visible crack. If the tiebacks have rusted, patching the face buys little time.

Base Flood Elevations of 10 to 15 Feet and Your Cap Height

More of the city falls in a mapped flood zone than New Port Richey, Holiday or Hudson. Of 82 points sampled on FEMA's map inside the city, 90.2% fell in Zone AE, 3.7% in the wave-velocity Zone VE and only 6.1% in Zone X. Base flood elevations at those points ran 10 to 15 feet NAVD88, with 11 feet the most common. The coastal Pasco panels here carry a June 5, 2020 effective date.

That matters most when a cap repair grows into a full cap rebuild. A new cap is your one chance to change the top of the wall, so if you want it taller, this is the time. Before any design is final, ask the Building Department what cap height it will accept and check your own lot on the FEMA map. A taller cap also changes how your dock sits against it, because city code measures dock height from the seawall. On a canal, Sec. 10-333 keeps a dock deck no more than 1 foot above the seawall and mooring pilings no more than 10 feet above it.

Storm history backs up the attention. The National Hurricane Center's Helene report records a Pasco County USGS sensor at 7.60 feet above mean higher high water and at least 9,900 structures damaged in the county, most by surge along the coast. Our storm seawall checklist covers what to look at after the next one.

When a Storm-Damaged Wall Has to Meet Today's Rules

Port Richey's marine structures chapter has a rule that catches owners after a bad storm. Under Sec. 10-278(b), a nonconforming structure has to be brought into conformity if 75% of it is destroyed by natural or manmade causes. Below that line, the rule doesn't force an upgrade, and a size-for-size repair follows the checklist's repair path. Above it, plan for current standards.

The same chapter treats neglect as the owner's problem. Sec. 10-280 bars keeping docks or piers in an unsafe, rotting or derelict condition. Sec. 10-313 requires a city permit for any dock, pier, piling or other structure, including ones in need of replacement, while minor routine maintenance repairs need none. Sec. 10-314 sends the application to the city building and zoning official for a letter of compliance, which then goes with the application to the state DEP.

Your practical step is a record. Photograph the wall now, at low tide, end to end. If a storm takes part of it, those photos and the permit history show what stood before, which helps both the size-for-size argument and any insurance claim. Keep the photos with your permit paperwork and any contractor correspondence, in one folder you can hand to the inspector or your insurer. Then call us for a look before you decide between a repair and a rebuild.

Seawall repair in Port Richey goes smoothly when the photos, the permit history and the written scope all agree, and we build the scope from what we measure on your wall.
