Marine Contractors in Palm Harbor, FL

Two County Desks for Marine Contractors in Palm Harbor, Not a City Office

Palm Harbor is a Census Designated Place, not a city. That means the marine contractors who work Palm Harbor waterfront answer to Pinellas County for everything. County code Sec. 58-511 puts the county building department in charge of construction standards, and that office issues the building permit for a seawall in unincorporated areas. The county's Water and Navigation section is a separate desk. It permits docks, seawalls, riprap and tie poles, and a brand new wall in county waters needs a county fill permit on top of that. You file through the Pinellas County Access Portal, linked from the Docks / Dredge & Fill page.

Adding a lift? Sec. 58-511(b) adds one more detail: a county dock permit covers the structure only, not plumbing or electrical, so the power to the lift needs its own permit. We figure out which desks your job touches while we're on site. For the wall itself, start with our Palm Harbor seawall repair page. For the whole permit sequence in both counties, read the Pasco and Pinellas permit guide. Marine contractors in Palm Harbor file with the county for every wall, dock and lift, so ask any bidder which desk they use.

Shallow Bayou Slips Around Ozona and Crystal Beach

Palm Harbor's water is mostly fingers of the Gulf. Inside the 2020 boundary you've got Saint Joseph Sound, Crystal Beach, Boggy, Greens, Klosterman, Sutherland and Smith Bayous, Dolly Bay and Little Dolly Bay, Lungrun Cove and Honeymoon Channel. Home Port Marina and the Ozona Fish Camp are in there too. Lake Chautauqua and Saint George Lake are the small inland lakes. The Census counts about 27.8 sq km of the place as water and 44.9 sq km as land.

Here, bayou depth shapes the dock. Sec. 58-543(f) wants at least 18 inches of water at the slip at mean low tide, plus an 18-inch channel out to open water. Check your slip at low tide before you settle on a boat or a lift. That depth tells you how far out the platform has to go.

Next come the unincorporated layout rules. Sec. 58-555(b) says your dock can't be longer than one half of the lot's waterfront width (tie poles don't count). The dock and any boat lift go in the center one third of the waterfront or 50 ft from the neighbor, whichever is less restrictive. Signed no-objection statements from your neighbors can waive both. Countywide, Sec. 58-555(a) allows no building over the water, permanent mooring for two boats at most, and one structure per residential site. Our Palm Harbor dock building page shows layouts that fit narrow bayou lots, and the dock builders service page covers framing and decking choices.

The County Spec Sheet for a Wall on Sound or Bayou Water

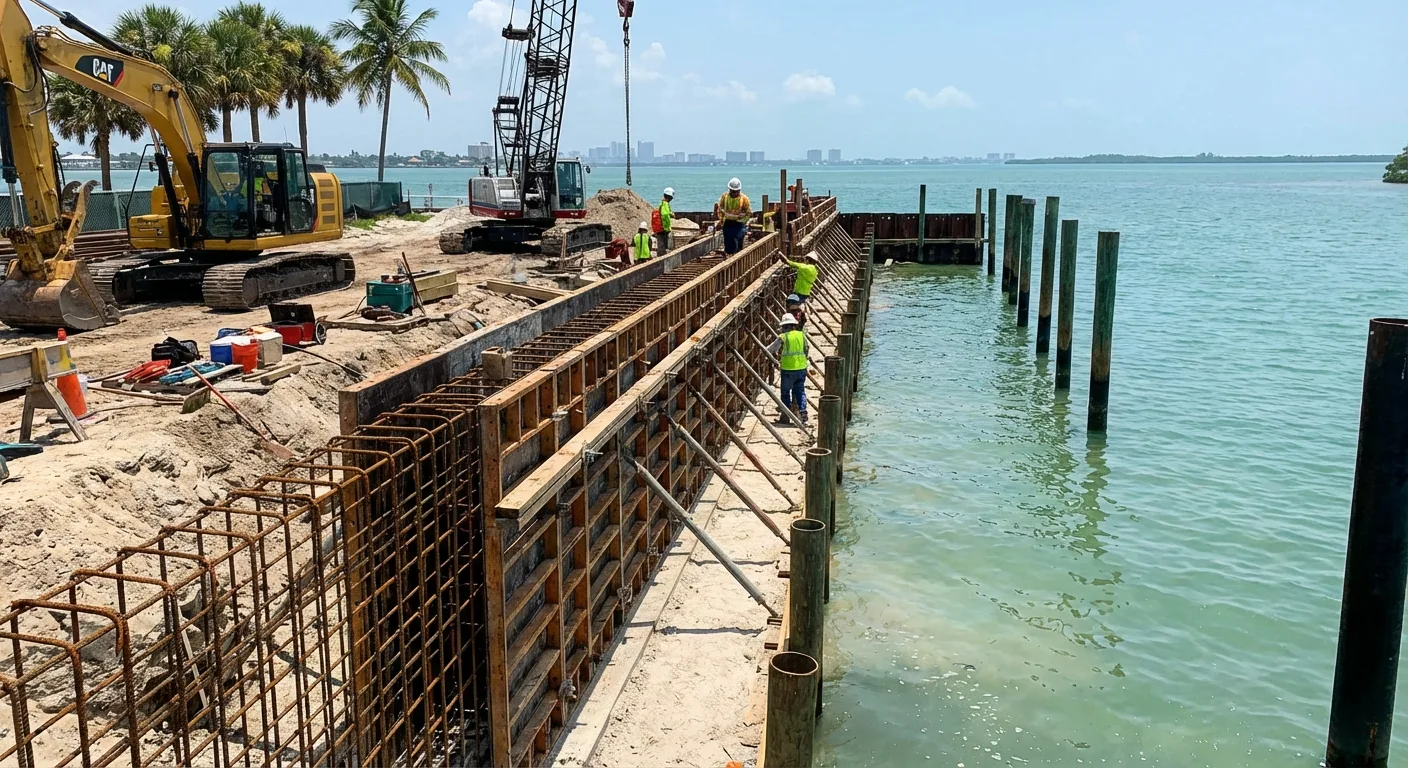

Pinellas writes its seawall minimums right into code, and a replacement wall in Palm Harbor has to meet them just like a new one. For non-Gulf waters, Sec. 58-576 calls for 3,500 psi concrete and sheet piling at least 5-5/8 in. thick. The poured cap has to be at least 9.5 in. thick by 16 in. wide. Tie rods run at least 12 ft long and sit no more than 10 ft apart. Bay-front walls have to reach elevation 5 ft or higher on the USCGS datum. An aluminum wall can't show more than 5 ft of exposed height. If your wall faces the open Gulf, the heavier Sec. 58-577 standards apply instead.

Where the wall goes matters just as much. Sec. 58-573 lets a replacement sit no more than 1 ft in front of the existing face, so the new wall can't creep out into the bayou. The county may require riprap at the base of a new or replacement wall, or wherever more than 25% of a wall face gets repaired. That means clean concrete or natural rock 6 in. to 3 ft across, on a slope no steeper than 2:1. Seawalls aren't allowed on shorelines that generally support wetland vegetation, and the code would rather see plants than hardening wherever it can.

Trying to pick a panel material? Our vinyl vs concrete seawall guide lays out the trade-offs. The seawall repair and construction page covers every repair method we use. Marine contractors in Palm Harbor can build this spec for a bayou lot or a Sound-facing one, but the wave exposure differs.

Additions, Sheds and the Deadmen Hidden in Your Yard

Your seawall is only as strong as the anchors buried behind it. Palm Harbor owners planning an addition or a shed find that out fast. County zoning Sec. 138-3505(b)(6) keeps structures on waterfront lots 25 ft back from mean high water where there's no seawall, or 15 ft from the midpoint of an adequate seawall or riprap. County code Sec. 58-578 also bars anyone from cutting or pulling a tieback for other construction without approved plans that keep the wall stable.

So get the tieback line located and marked before the excavator digs. We can open the cap at the anchor points, check the rods, and tell you whether the wall can take the work or needs repair first.

The ground changes block by block. The Astatula soils and Urban land unit covers about 23% of Palm Harbor, and it's excessively drained sand. Down nearer the water, the lower and wetter units (Myakka, Matlacha and St. Augustine, Immokalee, and Anclote fine sand) rate High for steel corrosion in the NRCS soil survey. That's rough on tie rods and hardware. Think about the age of the house, too. The Census puts Palm Harbor's median home at 1985, with about 29% built before 1980, so check with the seller or your own records on whether the wall was ever replaced.

Surge Heights and Flood Zones Along the Palm Harbor Shore

FEMA's current panels for this part of Pinellas mostly date to August 24, 2021. Inside the Palm Harbor boundary, about 15% of the mapped area is Zone AE and about 6% is Zone VE, the wave zone. Mapped base flood elevations run 6 to 12 ft in AE and 12 to 14 ft in VE. Your own number depends on your exact lot. Pinellas County notes that the FEMA flood map (FIRM) is what sets building and flood insurance requirements, so look your lot up through the county Flood Maps & Zones page before you set a cap height or a dock deck.

Hurricane Helene showed what those numbers mean. The National Hurricane Center put inundation at 5 to 7 ft above ground from the Anclote River south. A USGS sensor at nearby Fred Howard Park read 7.23 ft above mean higher high water. Water that high tops a cap, and when it drains back it can pull fill out through any open joint.

Some storm fixes take less paperwork than you'd expect. Repairing a permitted boat lift needs no Water and Navigation permit unless you're replacing pilings, and swapping deck boards alone needs none at all. After a natural disaster, Sec. 58-507 lets the county invoke an exemption so owners can rebuild a storm-damaged dock to its prior permitted layout, with 48 hours' notice before work starts. Our after-a-storm seawall checklist tells you what to photograph first, and dock repair explains pile and redeck work.

PPH Seawalls and Docks works as marine contractors in Palm Harbor from the permit desk to the finished wall. Send photos and your waterfront width, and we will look at the bayou or Sound frontage with you. Owners comparing marine contractors in Palm Harbor can ask for the same written scope from each bidder.
